Printing system | Continuous (charging control system) |
---|---|
Corresponding inks | Dye inks and pigment inks |
Dustproof waterproof | IP54 |
RoHS | Support |
Screen size | 5.7″ color LCD / touch panel |
Corresponding nozzles | 40µm / 50µm / 60µm |
Character height | 0.8-5mm (40-µm nozzle), 1-10mm (50-µm nozzle), 2-10mm (60-µm nozzle) |
The highest printing speed [characters/second] (5×5 dot fonts and 1character between) |
1780-3200 (it changes with a nozzle type and ink type) |
Character type | Alphabet (upper case/lower case), numbers, symbols, Japanese hiragana, katakana, kanji (JIS class 1and 2), the user characters |
Number of printed stages and the dot configuration example (length × width) |
[1-5 stages] 5×5,5×N [1~3stages] 7×5,7×8,7×N [1~2stages] 9×7,9×9,10×8,12×10 [1stages] 16×12,16×16,24×18,24×24 |
Message registration characters number | Maximum of 4096 characters |
Message registration number | Maximum of 999 message |

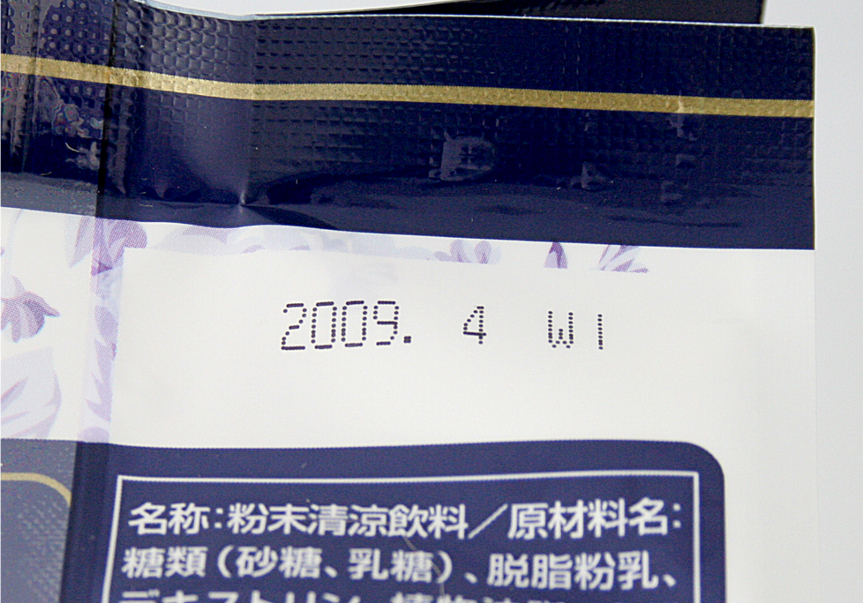

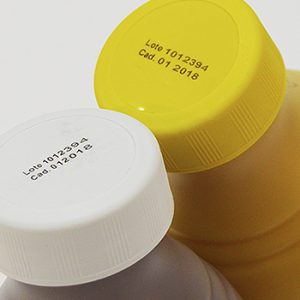

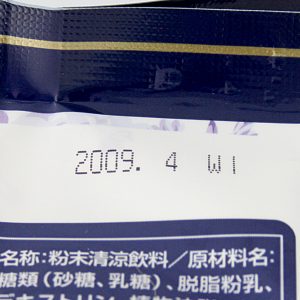

Date Time (expiry date) Printing function |
Chritian year, traditional Japanese calender year, year/month/day, day of the week, time (12 / 24H format), Julian date, serial week number in a year, early/middle/ late period of the month (variable period setting), AM / PM, shift code, character assignment function (to assign year, month, day, hour, minute, second, day of the week) to a maximum number of 4 to 15 digits of other characters. |
Numbering function | Up to 10 digits, any initial value setting, up / down, carry of digit (can be set to 1 count in the work number from 1 to 9999), zero suppression function (replacing the zero of the high-order digits with space, or to eliminate it), numbering character assignment function (can be assigned to non-numeric characters), advance setting numbers (2 to 36 decimal) can be divided (insert any of the characters between the numbers). |
Distance printing function | Up to 10 digits, can be divided (insert any of the characters between the numbers). |
Bar code printing function | ITF, Code39, NW-7, JAN, Code128 |
Two dimensional code printing function | QR Code, data matrix |
Kana-to-kanji conversion | Yes |
External connection | I/O,Signal light, RS-232C, LAN, encoder, UPS, USB memory |
Data input | Touch panel, RS-232C communication, Ethernet |
Communication function | RS-232C 1CH maximum 115,200bps, Ethernet |
Head cable length | 3.5m |
Multi-control | A maximum of 16 cordless handset (slave) control is possible with one main (master). [Controllable function] start / stop, power OFF, system clock setting, message selection, printing content editing, numbering current value setting. |
The source of dry air | Fit tube shape: ø6mm or 8mm Air source pressure: 0.8Mpa or less (air ventilation set included with the unit) Air flow rate: less than 10L / Min |

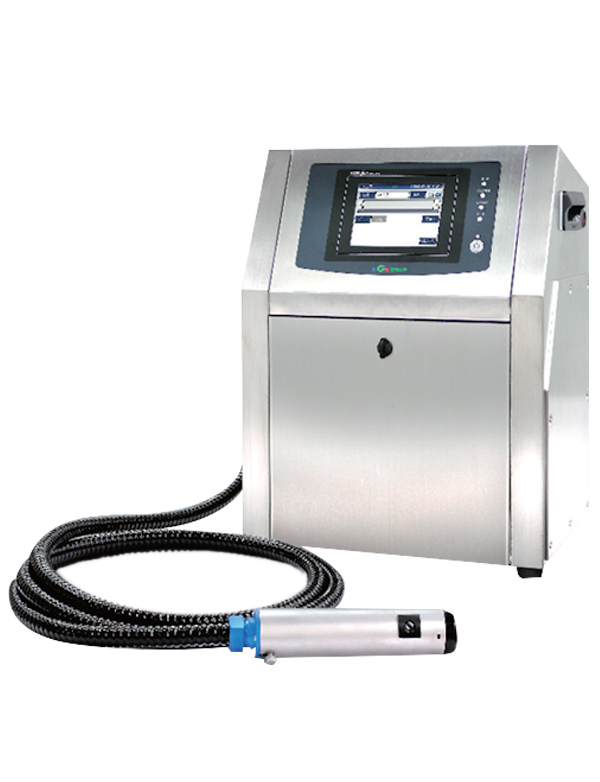

Installation area (width x depth x height) | Main part: 400Wx330Dx535H (excluding projection) Head: ø49.2mmx197mm |
Use environment (temperature, humidity) | 0-40°C (it changes with ink types), 10-85% (however, non-condensing |
Power supply | AC90-264V (47-63Hz), 80W |
Mass | 25kg |
Ground | D type grounding |
