APLINK MRX

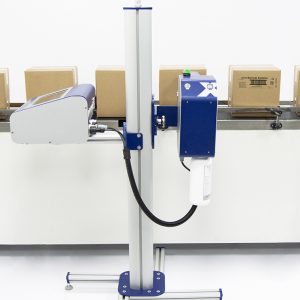

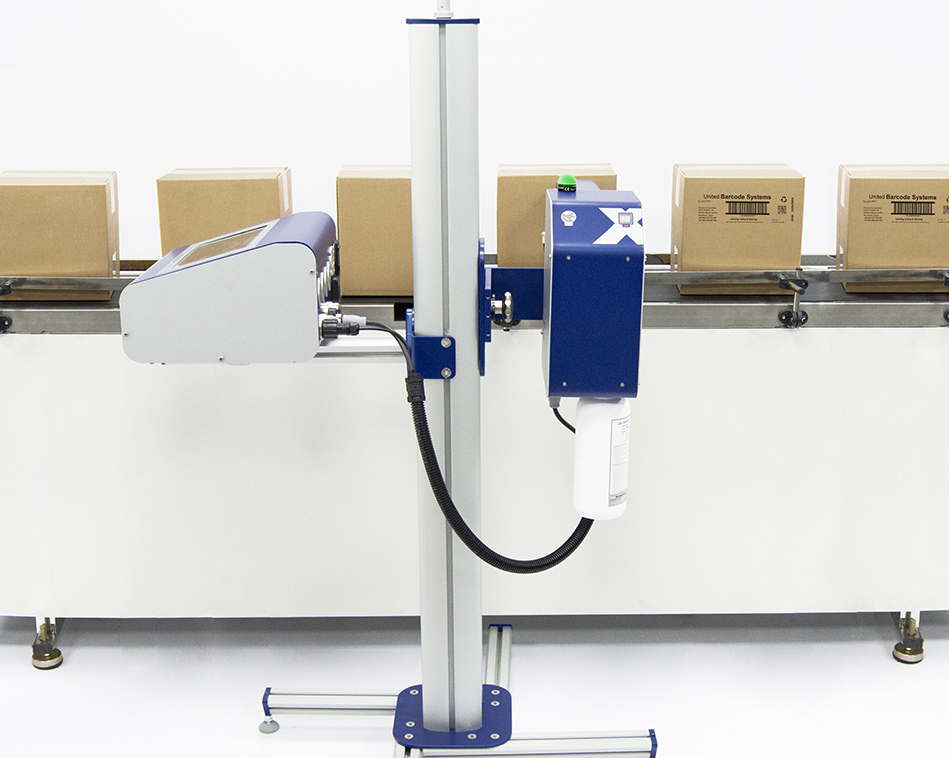

Designed and manufactured to print texts, images, logos, symbols and any 100% legible 1D/2D barcodes compatible with GS1 standards (GTIN13, GTIN14, G21-128, GS1 Datamatrix…) for secondary packages of porous surfaces, such as corrugated carton cases, cardboard trays and paper bags, etc.

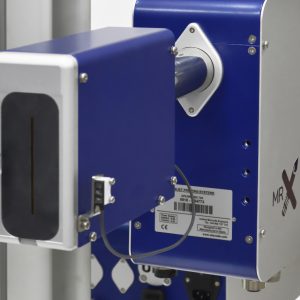

4th generation piezo electric print head allows printing messages up to 72 mm height, of high contrast, using eco-friendly oil-based ink, at resolutions up to 180 x 720 dpi and speed up to 110 m/min.

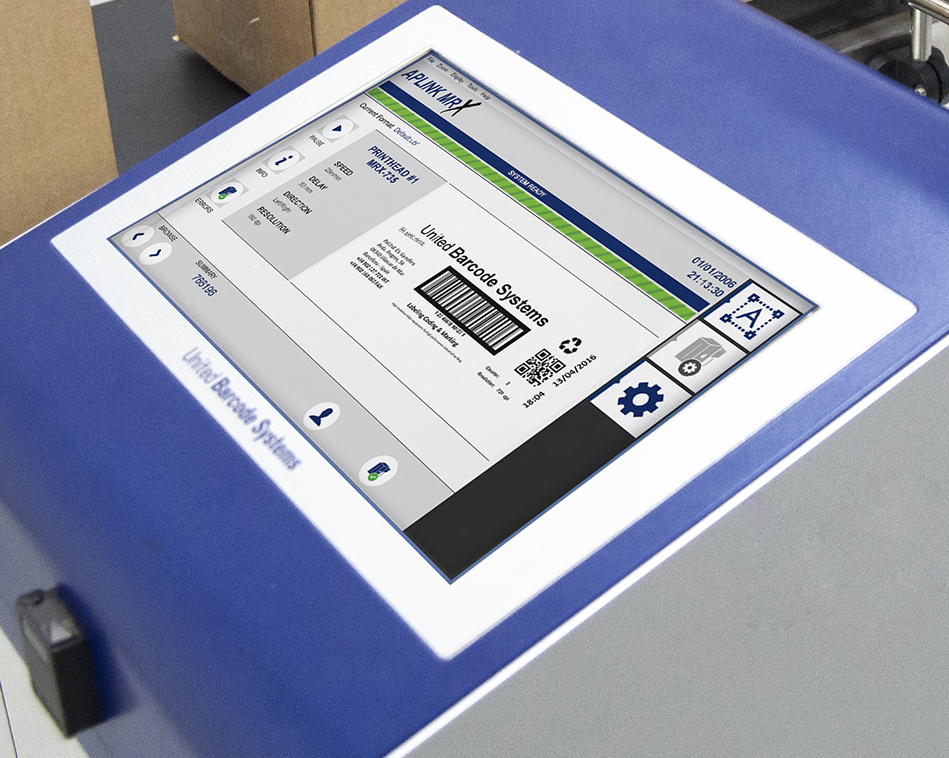

Thanks to its modular design, APLINK MRX allows simultaneous use of 1 to 4 printheads connected to one controller with 10.1” full color touch screen and intuitive graphic interface, that allows operate each printhead independently.

The non-pressurized ink bottle contains oil-based ink, 100% mineral oil free. It can be replaced without having to stop the printing process, which avoids having to stop the production line to change the consumable.

The innovative temperature and drop volume control technology, ensures a low consumption and a reliable print out and it becomes a great tool for cost-saving on the production line.

APLINK MRX is is easy to install and integrate into any production line. UBS message editor (WYSIWYG), UBS Designer Pro and UBS Labman 4.0 provide wide range of customized communication solution with any DDBB known on the market.

APLINK MRX Printer can also work on standalone mode, uploading the messages through a USB drive or Ethernet connection.

APLINK MRX



View



Download

YouTube Video

Description
  • 100% mineral oil free ink
  • 4th generation piezo electric print head
  • Modular design with variable height and depth
  • Low periodical maintenance
  • 10.1” full color touch screen with graphic interface
  • Printing speed up to 110 m/min (330ft/min)
  • Resolution up to180 x 720 dpi
  • Printing height 72 mm (2.83″)
  • Printing on any porous surface
  • Ethernet and USB connectivity
  • Printer status control integrated light beacon
  • Non-stop mode consumable change
  • 1 to 4 print heads
  • Graphic software UBS Designer
  • UBS Designer incorporated into 10,1” touch screen controller
  • GS1 approved 100% readable barcodes
